| PARAMETERS | SPECIFICATIONS |
|---|---|
| MATERIAL OF CONSTRUCTION | FRP |
| TYPE OF RESIN | ISOPTHALIC/ GENERAL PURPOSE |
| GLASS FIBRE | CHOPPED STRAND MATT |
| SHAPE & SIZE | AS REQUIRED |
| COLOUR | LIGHT GREY |
| THICKNESS | 3 TO 5 MM |
| LOUVERS | YES |
| HANDLES | YES |
| FINISH | OUTSIDE SMOOTH FINISH (ONE SIDED FINISH |
| SUPPORTING | AS REQUIRED AT SITE BY FRP ANGLES /CHANNELS |
| CORROSION RESISTANCE | YES |
| UV STABILIZED | YES |
| MOULDING PROCESS | CONTACT MOLDING PROCESS |
| FLAMMABILITY | LOW FLAMMABILITY |
| GLASS CONTENTS | 30 TO 33% |
| OXYGEN INDEX | 27 TO 30 |
| FLAME SPREAD INDEX | 14 TO 15 |
| FRAME SIZE | HORSE POWER | ||
|---|---|---|---|
| 3000RPM | 1500RPM | 1000RPM | |
| 80 | 1 TO 1.5 | 0.75 TO 1 | 0.5 TO 0.75 |
| 90 | 2 TO 3 | 1.5 TO 2 | 1 TO 1.5 |
| 100 | 4 | 3 TO 4 | 2 |
| 112 | 5.5 | 5.5 | 3 |
| 132 | 7.5 TO 10 | 7.5 TO 10 | 4TO 7.5 |
| 160 | 15 TO 25 | 15 TO 25 | 10 TO 15 |
| 180 | 30 | 25 TO 30 | 20 |
| 200 | 40 TO 50 | 40 | 25 TO 30 |
| 225 | 60 | 50 TO 60 | 40 |
| 250 | 75 | 75 | 50 |
| 280 | 100 TO 125 | 100 TO 125 | 60 TO 75 |
| 315 | 150 TO 230 | 150 TO 230 | 100TO195 |
| 355 | 320 TO 390 | 305 TO 365 | 245 TO 285 |
| 400 | 440 TO 520 | 440 TO 520 | 380 TO 435 |

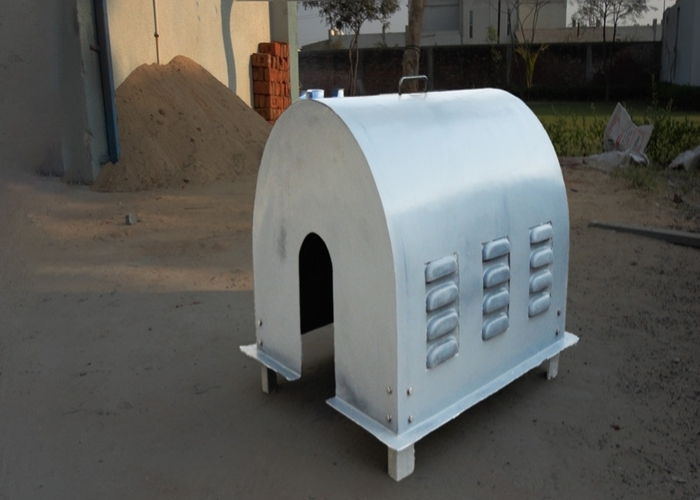

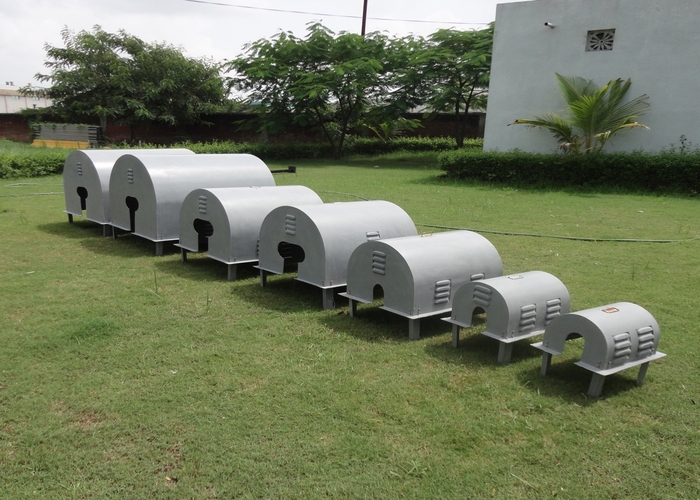

The MOTOR PROTECTION SHELL is chosen in accordance with the physical dimensions of the motor cover in order to maintain a uniform clearance of at least 50mm with respect to the motor body for the following purposes:
To effectively safeguard the motor, it should
