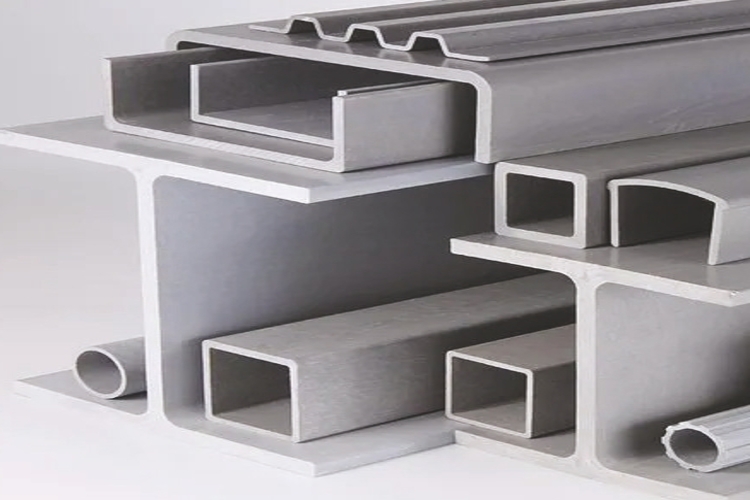

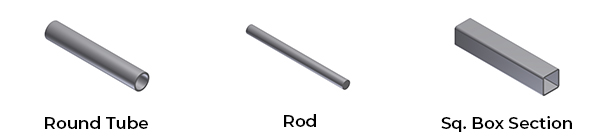

GRP/FRP Structural pultruded profiles is manufactured using a resin matrix combined with a fiber reinforcement. This is continuously produced and cured to provide a material with exceptional strength and resilience. GRP/FRP structural profiles offer a number of advantages and mechanical qualities that are comparable to or better than steel equivalents. The structural profiles are available in various shapes like C/U Channel, I-Beam, H-Beam, Round Tube, Square Box, Angle, Rod, Hand Rail, Deck panels, etc and customized shapes are also available upon request.
| Mechanical Properties | Standard Followed | Units | Lenthwise Min. Value | Crosswise Min. Value |
|---|---|---|---|---|
| Tensile Stress | ASTM D-638 | Mpa | 206.8 | 48.2 |
| Tensile Modulus | ASTM D-638 | Gpa | 17.2 | 5.5 |
| Compressive Stress | ASTM D-695 | Mpa | 206.8 | 103.4 |
| Compressive Modulus | ASTM D-695 | Gpa | 17.2 | 6.9 |
| Flexural Stress | ASTM D-790 | Mpa | 20.6.8 | 68.8 |
| Flexural Modulus | ASTM D-790 | Gpa | 11 | 5.5 |
| Izpd Impact | ASTM D-256 | J/mm | 1.28 | 0.22 |
| Ultimate Bearing Stress | ASTM D-953 | Mpa | 206.8 | 206.8 |
| Modulus of Elasticity | Full Section | Gpa | 17.9 | - |
| Shear Modulus | Full Section | Gpa | 2.9 | - |
| Poison's Ratio | ASTM D-3039 | mm/mm | 0.33 | - |
| Short Neam Shear | ASTM D-2344 | Mpa | 31 | - |
| Physical Properties | Standard Followed | Units | Min. Value |
|---|---|---|---|
| Barcol Hardness | ASTM D-2583 | 45 | |
| 24 Hours Water Absorption | ASTM D-570 | % | Max 0.6 |
| Density | ASTM D-792 | gm/cc | 1.72-7.95 |
| Glass Content | ASTM D-2584 | % | min 55% |
| Limiting Oxygen Index | ASTM D-2863 | % | min 30% |
| Electrical Properties | Standard Followed | Units | Min. Value |
|---|---|---|---|
| Arc Resistance Lengthwise | ASTM D-495 | Seconds | 120 |
| Dielectric Strength Lengthwise | ASTM D-149 | kV/mm | 4.5 |
| Flammability Properties | Standard Followed | Units | Min. Value |
|---|---|---|---|
| Flame Spread | ASTM E-84 | Flame Spread | Less than 25 mm |
| Flammability | ASTM D-635 | Seconds | Less than 5 sec. |
| Vertical Burn Test | UL 94 | --- | V0 |
