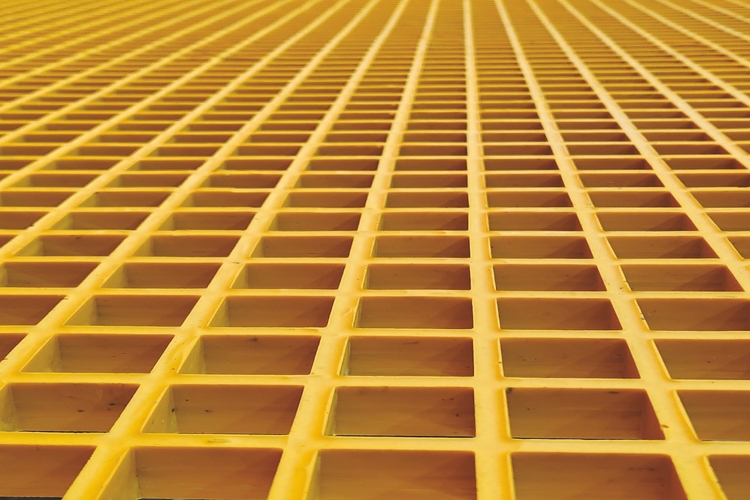

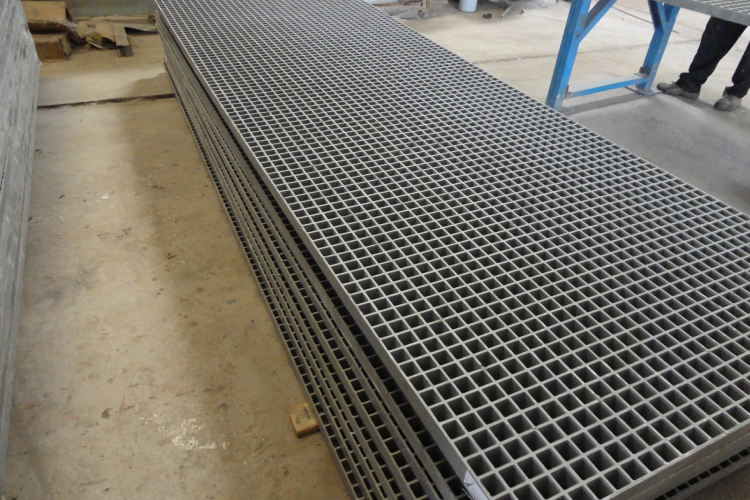

Molded gratings are recognized for their tremendous strength, extreme corrosion resistance, extended life, and safety. Our Gratings are in compliance with most stringent international criteria. Gratings are manufactured from specially blened resin systems and are intended to outperform the conventional materials it is meant to replace for many years of dependable operation.
Their minimal maintenance requirements and long lifespan result in a much lower life cycle cost than steel, making them comparable to steel at the installation cost stage.
There are polyester, vinyl ester, and phenolic resin options for fiberglass molded gratings. All resin types are UV-stabilized and self-extinguishing.
For demanding applications, fiberglass molded gratings are created with a variety of mesh designs and surfaces.
Our grating complies with the requirements outlined by the FGMC of the ACMA (American Composite Manufacturing Association).
| Resin Type | Resin Base | Description | Flame Sprad rating ASTM E84 |
| Type V | Vinyl Ester | Superior Corrosion Resistance & Fire Retardant | Class1, 25 or Less |
| Type IFR | Isopthalic Polyester | Industrial Grade Corrosion resistance & fire retardant | Class1, 25 or Less |
| Type I | Isopthalic Polyester | Industrial Grade Corrosion resistance & fire retardant | Non fire retardant |
| Type P | phenolic | Low smoke and superior fire resistance | Class1, 25 or Less |
| Parameters | Fiberglass Gratings | Hot Dipped GI | SS |
| Life Span | High | Moderate | High |
| Strength to weight ratio | High | Low | Low |
| Life Cycle Cost | Low | High | High |
| Corrosion Resistivity | Very High | Moderate | High |
| Chemical Resistivity | Very High | Moderate | High |
| Electrical Conductivity | Nil | High | High |
| EMI/RFI Transparency | High | Nil | Nil |
| Installation Cost | Low | Moderate | Moderate |
| Handling | Very Easy | Difficult | Difficult |
| Anti Skid | Available | NA | NA |
| Colour Range | Available | NA | NA |
